T191 Emergency Recovery Parachute System

share
WeChat
copy Link
Facebook
Twitter
LinkedIn
Pinterest
Pinterest

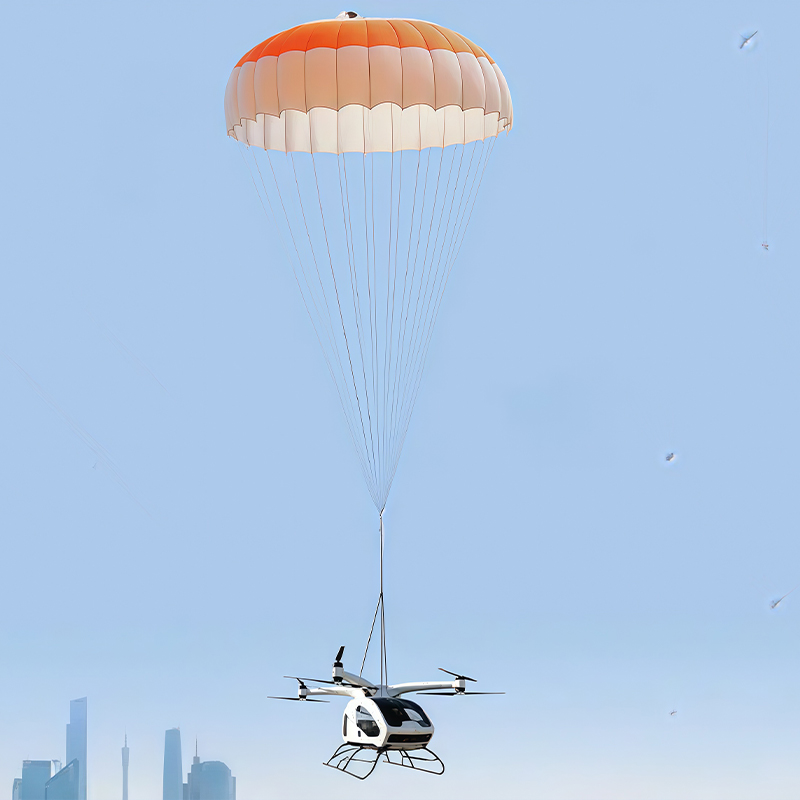

The T191 Emergency Recovery Parachute System is tailored for eVTOLs, low-altitude multirotors, and similar aerial platforms, featuring a mechanically activated rocket deployment system for rapid, reliable emergency response. With manual activation, it lets pilots address power failures, malfunctions, or structural issues quickly—critical for eVTOLs, where low-altitude failures leave little time to react. Offering fast inflation, controlled descent, and a compact design, it minimizes impact risks. Models range from T191-350 (350kg) to T191-800 (800kg), operating in -40°C to +60°C with a 12-year service life, making it a trusted safety solution for modern aerial platforms.
Inquiry
Detail

Product Details

The T191 Emergency Recovery Parachute System is specifically engineered to meet the safety needs of eVTOLs, low-altitude multirotors, and other aerial platforms. It features a mechanically activated rocket deployment system, ensuring quick and reliable parachute deployment during critical emergencies. Operated via manual activation, it gives pilots direct control to respond to power failures, flight malfunctions, or structural issues.


For eVTOL applications, the T191 addresses the unique challenges of vertical takeoff and landing operations—where low-altitude failures leave little time for corrective action. The parachute is designed to significantly reduce descent speed, minimizing impact forces and enabling the aircraft to land with minimal risk to passengers, crew, and equipment.


Key features include fast inflation, rapid deployment, and controlled descent speeds for smooth landings, with support for customized solutions to meet specific requirements. Its core advantages are: a compact, lightweight design; short parachute opening time; low opening overload; high inflation reliability; strong stability; and a low stable descent speed.


Model Specifications


T191-350Maximum deployment weight: 350kgMaximum deployment speed: 110 km/hEjection system: 2.2kg (dimensions: Φ79x306mm)Parachute component weight: 7.6kgTotal system weight: 9.8kgPackaging: 30x25x15 cm soft packDeployment time (hovering conditions): 3sMinimum deployment altitude: 60mMaximum deployment load: 6gMaximum descent rate (at 1500m, standard daytime temperature): ≤7m/s (equivalent to a 2.5-meter fall)Main canopy area: 92㎡Total impulse: 400NSRocket motor burn duration: 1±0.1sActivation: ManualOperating temperature range: -40°C to +60°CMaintenance interval: 6 yearsService life: 12 years

T191-500Maximum deployment weight: 500kgMaximum deployment speed: 110 km/hEjection system: 2.2kg (dimensions: Φ79x306mm)Parachute component weight: 9.3kgTotal system weight: 11.5kgPackaging: 35x25x15 cm soft packDeployment time (hovering conditions): 3sMinimum deployment altitude: 60mMaximum deployment load: 6gMaximum descent rate: ≤7.5m/s (equivalent to a 2.9-meter fall)Main canopy area: 110㎡Total impulse: 400NSRocket motor burn duration: 1±0.1sActivation: ManualOperating temperature range: -40°C to +60°CMaintenance interval: 6 yearsService life: 12 years

T191-650Maximum deployment weight: 650kgMaximum deployment speed: 110 km/hEjection system: 2.5kg (dimensions: Φ79x355mm)Parachute component weight: 11.3kgTotal system weight: 13.8kgPackaging: 15×26×50cm soft packDeployment time (hovering conditions): 4sMinimum deployment altitude: 70mMaximum deployment load: 6gMaximum descent rate: ≤7.5m/s (equivalent to a 2.9-meter fall)Main canopy area: 140㎡Total impulse: 700NSRocket motor burn duration: 1±0.1sActivation: ManualOperating temperature range: -40°C to +60°CMaintenance interval: 6 yearsService life: 12 years

T191-800Maximum deployment weight: 800kgMaximum deployment speed: 110 km/hEjection system: 2.5kg (dimensions: Φ79x355mm)Parachute component weight: 12.5kgTotal system weight: 15kgPackaging: 40×14×34cm soft packDeployment time (hovering conditions): 4sMinimum deployment altitude: 80mMaximum deployment load: 6gMaximum descent rate: ≤7.5m/s (equivalent to a 2.9-meter fall)Main canopy area: 175㎡Total impulse: 700NSRocket motor burn duration: 1±0.1sActivation: ManualOperating temperature range: -40°C to +60°CMaintenance interval: 6 yearsService life: 12 years
