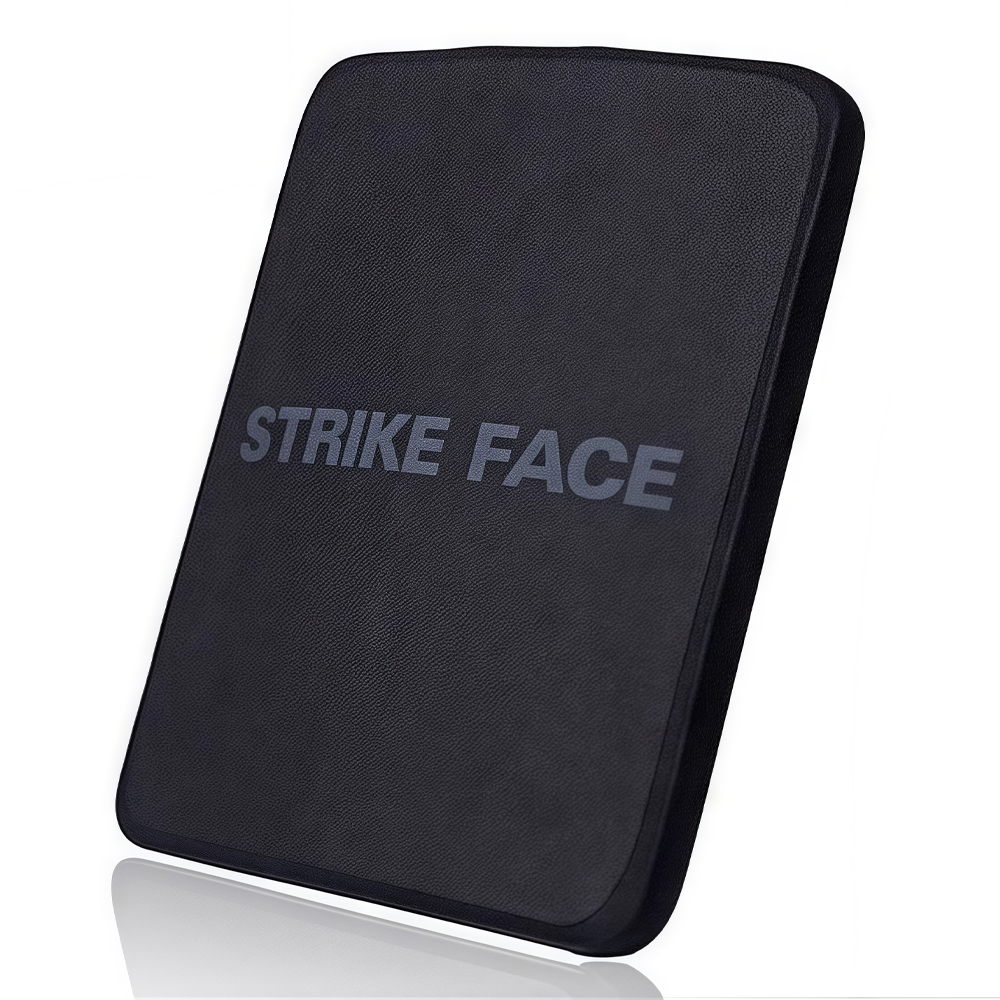

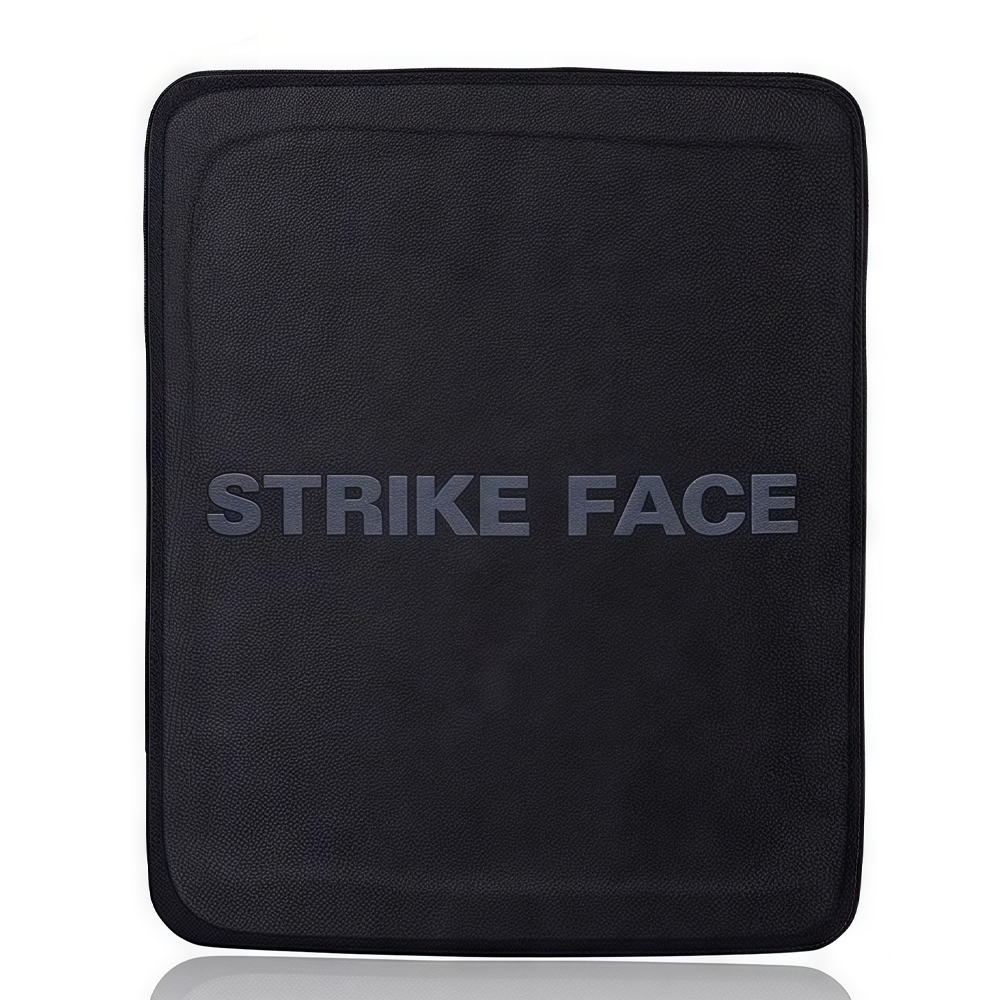

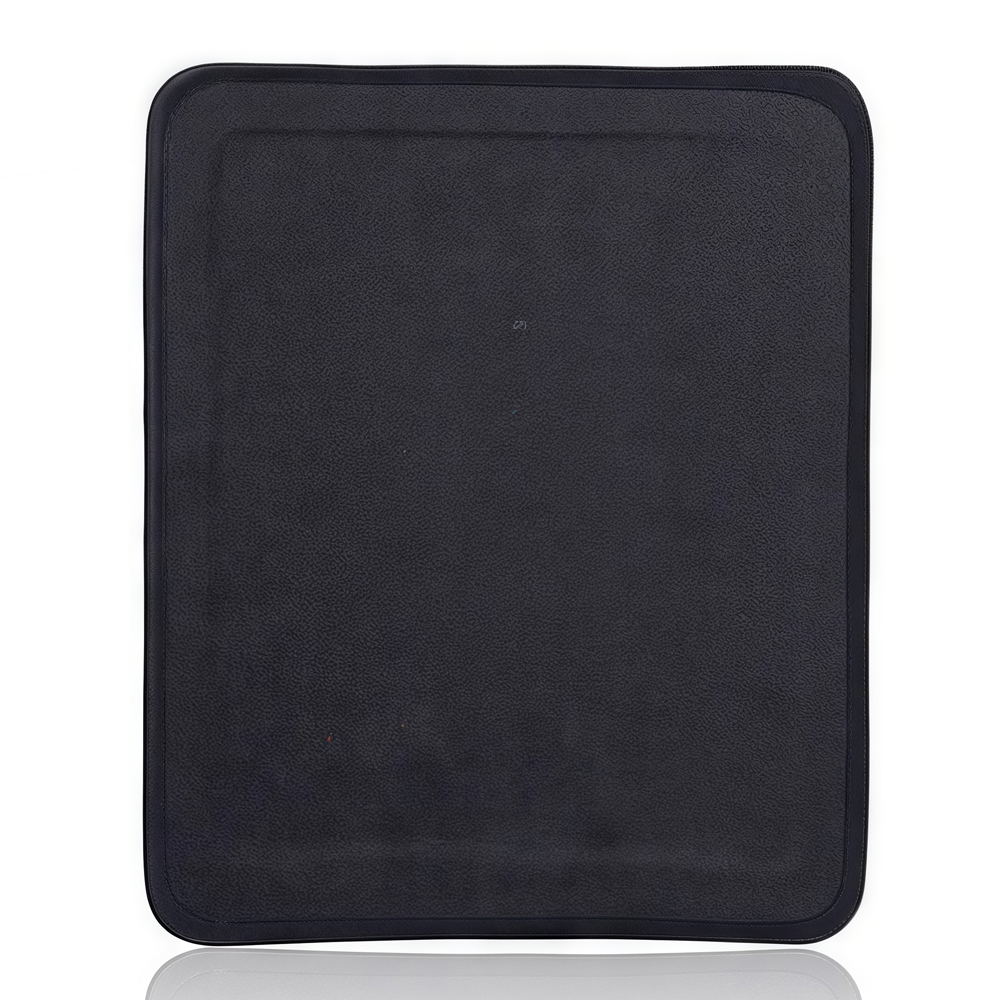

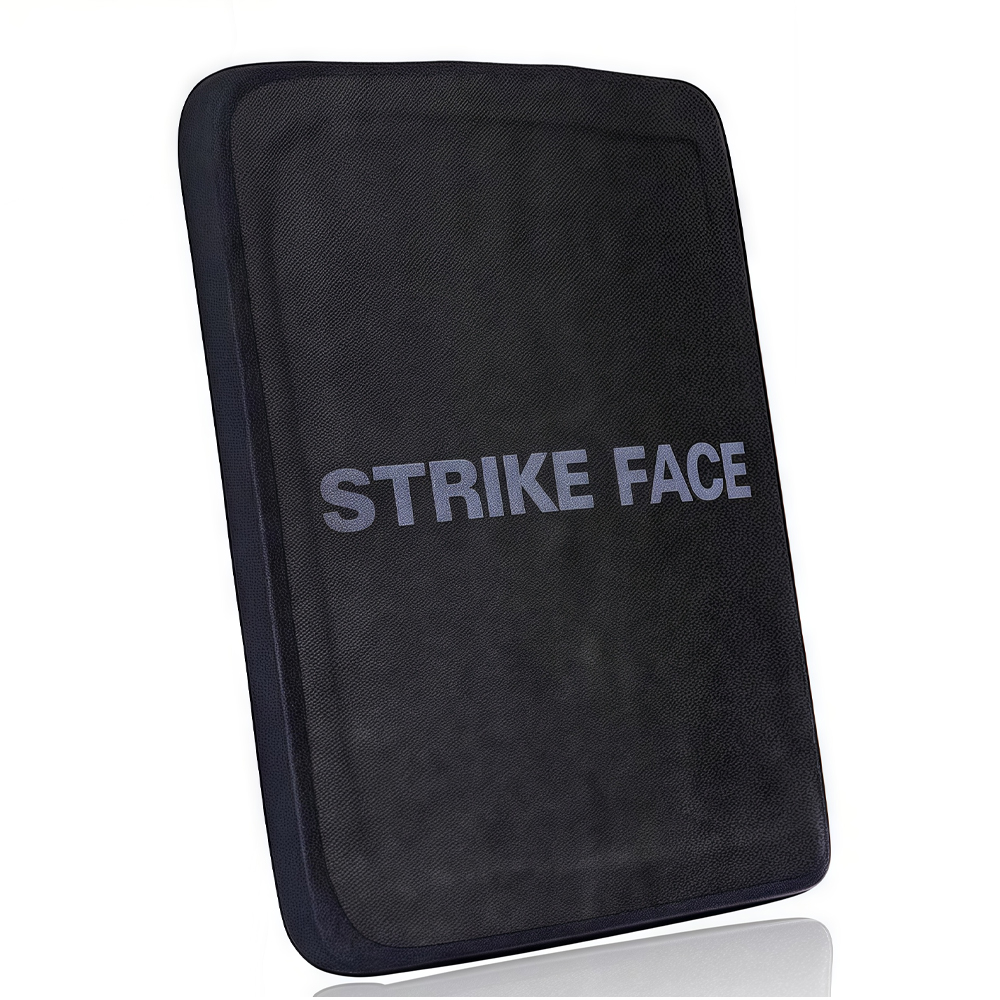

Level III Silicon Carbide Ballistic Armor Plate

Model S-3T250300SA: SiC+HPPE+Anti-BFS, NIJ 0101.06 III+, 2.13kg, single curve, 5-yr warranty—enhanced rifle protection for high-risk missions.
Inquiry
Detail
Built for missions where threats step up, this advanced plate delivers III+ protection that outperforms standard Level III—pairing ultra-tough defense with agility, perfect for counter-terror or border security jobs.

I. Core Advantages: Enhanced Defense That Moves With You

1. NIJ 0101.06 Level III+ Protection – Stops More, Lasts Longer

It goes beyond standard Level III to meet NIJ 0101.06 Level III+ standards—tackling high-velocity rifle threats better than conventional plates. At 15 meters, it reliably stops 7.62×51mm M80 NATO (full-power NATO ammo), 7.62×39mm AK47 MSC (standard AK rounds), and 5.56×45mm M193 (M16/AR-15’s fast-moving ammo). What sets it apart? It handles multiple hits or near-misses better—ideal for high-risk missions like counter-terror raids or border patrol, where threats are more intense than routine patrols.

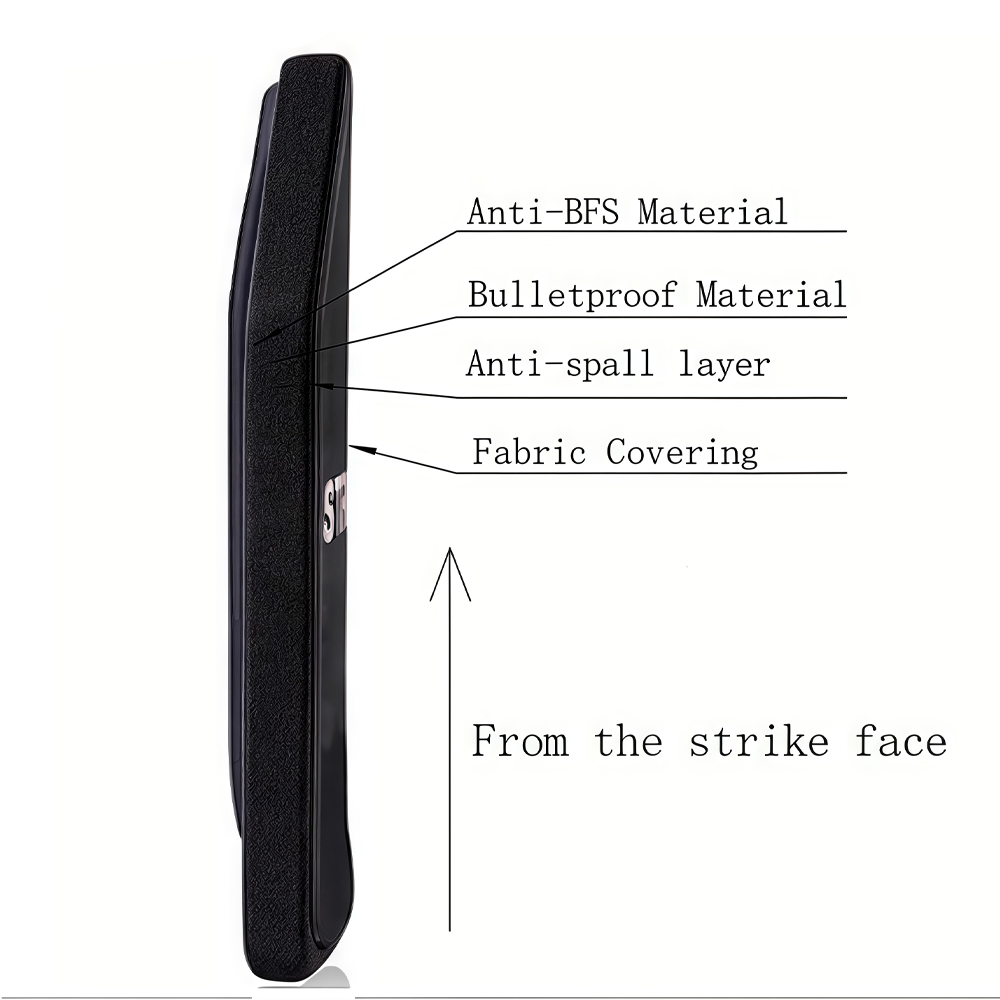

2. Triple-Layer Shield: SiC + HPPE + Anti-BFS

Three layers work in tandem to block threats and cut harm:
  • Silicon Carbide (SiC) Ceramic: Ultra-hard (HV0.5 ≥ 2600) front layer shatters rifle bullet cores—even hardened projectiles that trip up standard ceramic plates.

  • HPPE (High-Performance Polyethylene): Gel-spun fibers (15x stronger than steel by weight) soak up leftover kinetic energy, stopping penetration and keeping the plate intact after impacts.

  • Anti-BFS Material: Cuts backface deformation by 35% compared to non-enhanced plates—critical for close-range (15m) hits, as it lowers blunt trauma risk and keeps you in the fight.

3. 2.13kg Balanced Weight – Protection Without the Drag

At 2.13±0.05kg per plate, it hits a sweet spot rare for III+ armor: lighter than most competing III+ plates (around 2.5kg) and 30% lighter than steel-based enhanced options. You can wear it for 6+ hour building clears or long patrols without feeling fatigued—agility and defense, no compromises.

4. Single Curve + Durable Build – Fits Any Carrier, Any Weather

Its single curve contour works with 90% of standard tactical carriers (MOLLE, slick, low-profile styles) and fits most upper torsos (slim to medium builds)—no custom tweaks needed. The outer 600D black Oxford fabric repels heavy rain (no seepage) and resists flames, plus a 5-year warranty guarantees it holds up to extreme temps (-30℃ to +50℃) and daily wear.

II. Detailed Specifications: Tuned for Advanced Threats

CategorySpecificationDescription
Model InfoModel Number: S-3T250300SAAdvanced III+ ballistic plate; built for elevated rifle threat scenarios
Basic SpecsSize: 250×300mm±2mm (10"×12")Covers core torso (heart, lungs, upper abdomen); fits standard plate carrier pockets

Thickness: 25±2mmSlimmer than bulky 30mm+ III+ plates; optimized for triple-layer defense

Weight: 2.13±0.05kgPer plate; front+back setup = ~4.26kg (lighter than full combat load + standard III plates)
Protection CoreMaterial: SiC Ceramic + HPPE + Anti-BFS MaterialSiC fragments bullets; HPPE absorbs energy; Anti-BFS cuts trauma

Ceramic Coverage: 225×275mmVitals-focused hard protection; no "edge weak spots" common in smaller ceramic zones

Protection Level: NIJ 0101.06 Level III+Exceeds standard Level III; better at handling high-velocity/multiple impacts
Structural DetailsCurvature: Single CurveHugs upper torso arc; compatible with most body types

Outer Covering: 600D Black Oxford (Waterproof + Flame-Retardant)Matte black (low visibility); scratch-resistant (handles gear friction); heat-resistant
Test PerformanceShooting Distance: 15MAligns with NIJ 0101.06 Level III+ test rules (enhanced for multiple hits)

Bullets Stopped: 7.62×51 M80 NATO; 7.62×39 AK47 MSC; 5.56×45 M193Defends against mainstream + high-velocity rounds; tolerates near-consecutive hits
WarrantyWarranty Period: 5 YearsValid for normal tactical use (excludes damage from dropping >1.2m, crushing, or chemicals)

III. Protection Principle: “Enhanced Stop + Smart Energy Management”

1. SiC Ceramic: Takes On High-Velocity Rounds

The SiC ceramic’s ultra-high hardness is built to shatter even slightly hardened rifle cores—something standard Level III plates struggle with. When a 5.56×45mm M193 or 7.62×51mm M80 NATO hits, the ceramic smashes the projectile into harmless debris, stopping initial penetration cold.

2. HPPE: Keeps the Plate Strong Post-Impact

Behind the ceramic, HPPE fibers form a tough, flexible barrier. Unlike standard plates, its dense gel-spun structure soaks up not just the bullet’s energy, but also spreads force from ceramic fragments. This lets the plate handle multiple near-hits—a big win for III+ performance.

3. Anti-BFS: Cuts Trauma, Keeps You Mobile

Integrated Anti-BFS tech limits backface deformation to <40mm (well below NIJ III+’s 44mm max). That means less rib bruising, fewer internal injuries, and no mid-mission mobility loss—critical when you need to stay sharp after a hit.

4. III+ vs. Standard Level III: The Difference That Matters

Standard Level III stops specified rounds once. This III+ plate? It’s tougher against multiple impacts and better at blocking “edge hits” (bullets near the plate’s perimeter)—a common weak spot in high-pressure fights.

IV. Application Scenarios: Tailored for Elevated Threats

User/ScenarioCore ValueUsage Tips
SWAT Counter-Terrorism TeamsIII+ stops high-velocity rounds; Anti-BFS cuts traumaUse in CQB carriers for hostage rescues or urban building raids (quick moves + reliable defense)
Military Border SecuritySingle curve fits any carrier; 2.13kg = no patrol fatiguePair with combat carriers for remote border zones facing AK47/M16 threats
High-Risk Executive SecurityLow-profile design; III+ defense for threat-heavy regionsWear in discreet carriers for VIP transport in conflict-adjacent areas
Tactical Training UnitsTriple-layer durability = repeated use; III+ simulates real high threatsUse for advanced drills (high-velocity/multiple-hit scenarios) to train teams

V. Usage Precautions: Keep III+ Performance Sharp

  1. SiC Ceramic Care: Don’t drop from >1.2m—hidden cracks (invisible to the eye) ruin III+ protection. If dropped, tap gently: a hollow sound means internal damage—stop using it right away and contact the manufacturer.

  2. Storage: Keep dry (RH ≤75%) and cool—avoid direct sunlight (UV breaks down HPPE) or temps over 50℃ (softens fibers). Don’t stack heavy gear on it (warps the single curve).

  3. Fabric Maintenance: Clean the 600D fabric with mild soap and water only—harsh detergents break down waterproof/flame-retardant coatings. Check monthly for tears (exposed layers reduce protection).

  4. Warranty & Replacement: Never cut, drill, or modify the plate—it voids the 5-year warranty. After stopping a rifle round, replace it immediately (III+ protection is compromised post-impact).
