Ultra-high molecular weight polyethylene interception net

share
WeChat
copy Link
Facebook
Twitter
LinkedIn
Pinterest
Pinterest

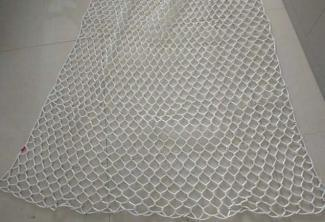

The interception net structure consists of a UHMWPE
rope net, a frame and a tensioning device, The frame
and tensioning device can be selected by the customer
according to the actual situation . It is woven from
ultra-high molecular weight polyethylene strips. The
installation distance should be kept above 450 mm .
Inquiry
Detail


The interception net system is composed of three parts: a UHMWPE (ultra-high molecular weight polyethylene) rope net, a frame, and a tensioning device (the frame and tensioning device can be customized according to actual needs).

  • Material: Woven from ultra-high molecular weight polyethylene strips.
  • Installation requirement: The installation distance should be kept above 450 mm.
  • Basic parameters:

    • Surface density: 1kg/㎡

    • Rope diameter: 5mm

    • Mesh size: 40mm×40mm

  • Key performance parameters (Table 1):

    • Braided structure: 12 shares

    • Width: Custom-made

    • Raw material strength: 28g/d (grams-force per denier, a unit of fiber strength)

    • Breaking strength: 150KN (kilonewtons, indicating high resistance to breakage)

Field tests were conducted in Kazakhstan:

  • RPG-7 rocket test: 5 rounds were tested, and 3 rounds were effectively intercepted (the projectile fuse was not triggered, and no metal jet was generated), with an interception rate of 60%.

  • Suicide drone impact test: All attempts to intercept failed.

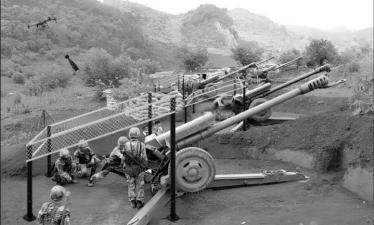

  • Artillery position: Placed at the rear of the position to protect against rear attacks from RPGs and drones.

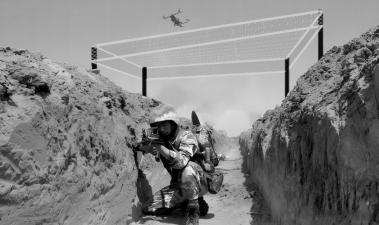

  • Field command post/tunnel: Placed on the top to protect against top bombing attacks from drones.

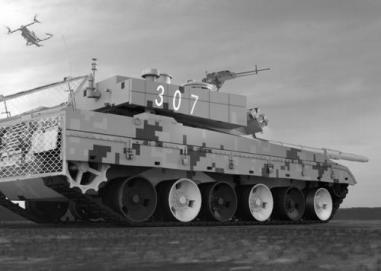

  • Rear of the tank: Placed at the rear to protect against rear attacks from RPGs and drones.
